International ISO 7241-1 Series B

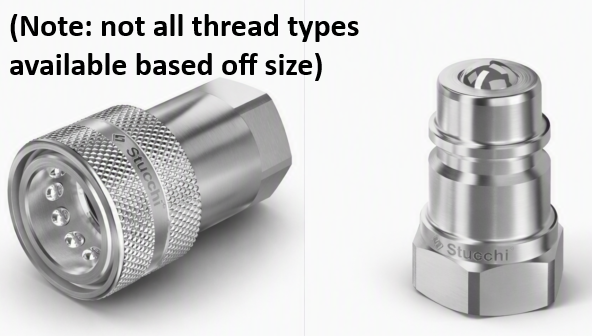

Safeway’s S10 Series quick couplings meet international Standard ISO 7241-1 Series B requirements with improved performance over competitive interchanges (Aeroquip FD45, Hansen HK, Parker 60, etc.) This unit is 1/4” body size in plated steel with an operating pressure of 5,000 PSI and a 1/4″ female pipe thread.
Meets dimensional requirements of ISO 7241-1 Series B, the most widely used Industrial Interchange.
Interchangeable half-for-half with Aeroquip FD45, Hansen HK, and Parker 60 Series as well as others conforming to the interchange.
Double shut-off poppet style valving with captive poppet seal provides a durable, guaranteed leak-free seal.
Full-flow design for optimum system performance.
100% leak tested.
Heavy duty detent ball latch design for a reliable connection time after time.
Only rugged, high quality carbon steel valving and retainers; no powdered metal parts.
Method of obtaining and presenting performance data conforms to ANSI (NFPA) T3.20.2.R2, Hydraulic fluid power – Quick action couplings – Test methods.
|Dimensions||3 × 6 × 6 in|
|Max Operating Pressure|
